The IQF of DTS uses stainless steel mesh belt forconveying. During the quick freezing process, theproducts to be frozen are affected by the strongcold air flow from bottom to top on the mesh belt,forming a semi-suspended state. The cold airflows around each food unit, effectively promotingthe rapid dissipation of heat inside the food and significantly accelerating the rate of heatexchange.
The IQF of DTS uses stainless steel mesh belt forconveying. During the quick freezing process, theproducts to be frozen are affected by the strongcold air flow from bottom to top on the mesh belt,forming a semi-suspended state. The cold airflows around each food unit, effectively promoting the rapid dissipation of heat inside the food and significantly accelerating the rate of heatexchange.At the same time, a large amount of monomer food is driven by the stainless steel meshbelt in a semi-fluid state and moves forward.
lQF is the best choice for quick freezing of fruit andvegetable foods in the form of slices, blocks, strips,and granules.For example, strawberries, Frenchfries, peas,mushrooms, corn kernels,greenbeans, diced carrots, etc.
Using advanced fluidization technology, the pulse flowmonomer quick freezing machine is specificallydesigned for bulk products that require gentleprocessing, such as fruits and vegetables. By evenly distributing airflow and pulse vibration, it ensures that the material surface is not damaged to provide stableproduct quality and capacity.

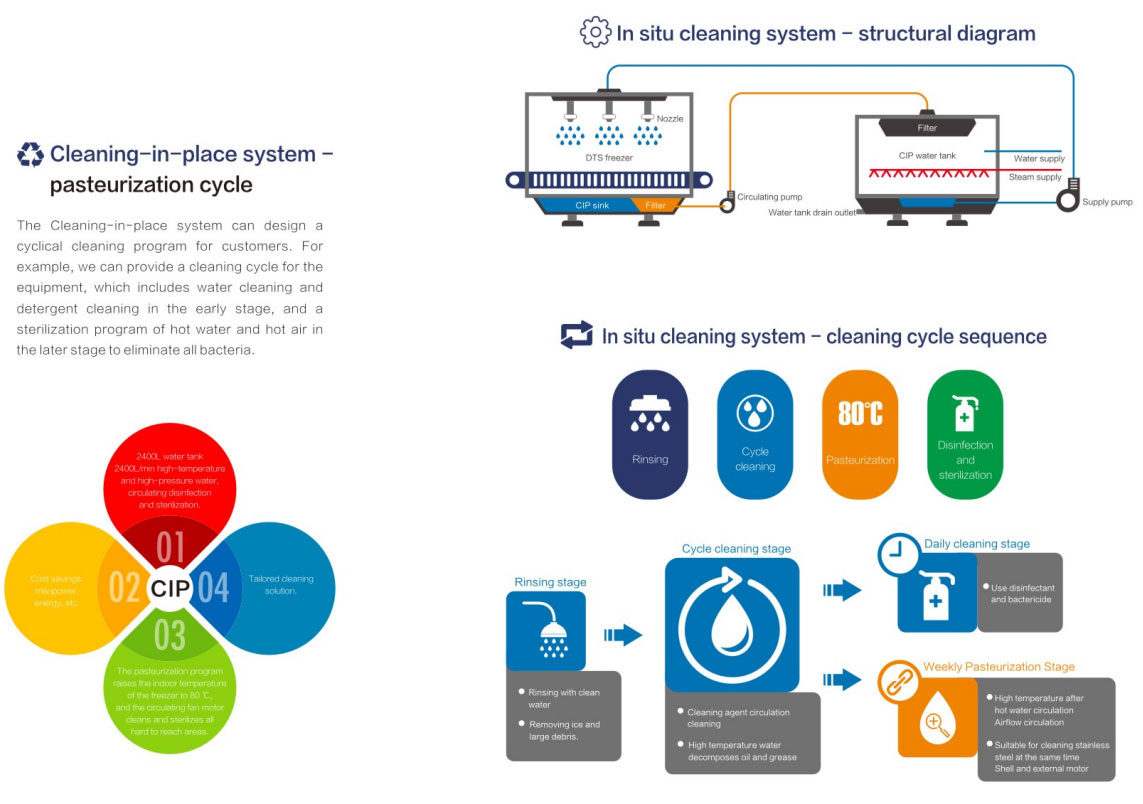

On the basis of not compromising the performance andproduct quality of the quick freezing machine, the synchronous continuous hot air defrosting systemensures the continuous and stable operation of theequipment, achieving uninterrupted operation. Throughprecise airflow control, the product is able to maintain aconstant temperature and wind speed, thereby ensuringconsistency in the production process.
The fan design aims to facilitate cleaning and reducemaintenance requirements.In daily operation, these fanscan operate continuously and stably,efficientlygenerating fluid airflow,By selecting aluminum orstainless steel materials,suitable construction schemescan be chosen according to different cleaningprocesses.
We use fluid dynamics simulation technology to designthe most energy-efficient and scientific wind fieldcirculation system for fuidized freezing machines, inorder to form a more stable horizontal airflow. By workingin conjunction with high-performance evaporator coils,the continuous circulation of cold air is ensured, therebyachieving the goal of high efficiency and energyconservation, and ultimatelyincreasing production.
|
Model |
Nominal freezing capacity ( kg/h ) |
Compressor unit |
Condensation form |
|
DTS-IQF1000 |
1000 |
|
|
|
DTS-IQF2000 |
2000 |
||
|
DTS-IQF2500 |
2500 |
||
|
DTS-IQF3000 |
3000 |
||
|
DTS-IQF3500 |
3500 |
