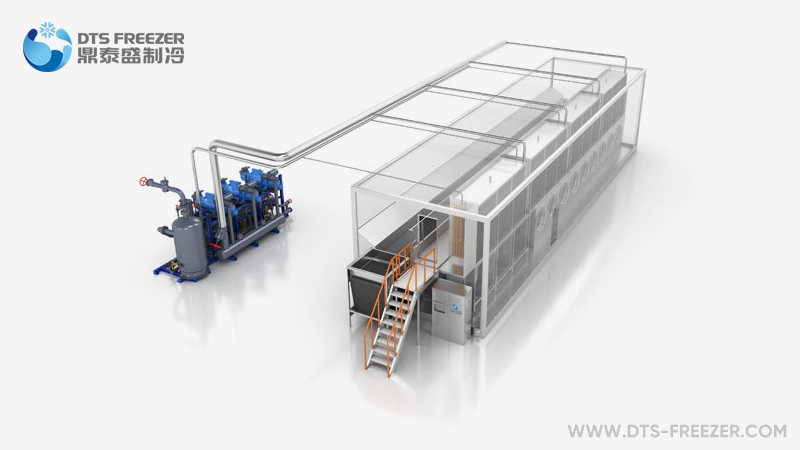

The IQF of DTS uses stainless steel mesh belt forconveying. During the quick freezing process, theproducts to be frozen are affected by the strongcold air flow from bottom to top on the mesh belt,forming a semi-suspended state. The cold airflows around each food unit, effectively promotingthe rapid dissipation of heat inside the food and significantly accelerating the rate of heatexchange.

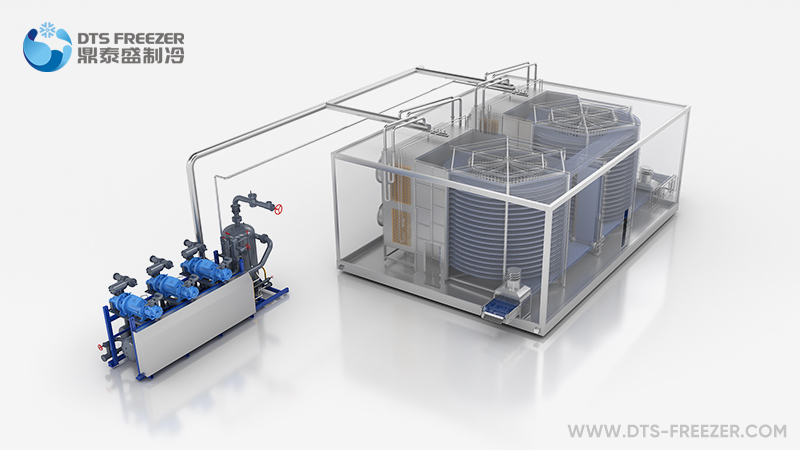

Spiral quick freezer is an energy-savingand fast freezing equipment with a compactstructure, wide applicability, small footprint andstrong freezing ability. lt mainly consists of thetransmission part,evaporator,storage plate,refrigeration unit part and electrical device.Suitable for fast monomer freezing of small itemssuch as processed foods, small packaged foodssegmented meat, ice cream, as well as monomerfreezing of large frozen products such as fastfood, whole chicken, whole fish, etc. The doublespiral freezer provides flexible feeding anddischarging options. This device can easilyconnect with the customer's front and rearprocessing production lines on the ground.ensuring ease of use.

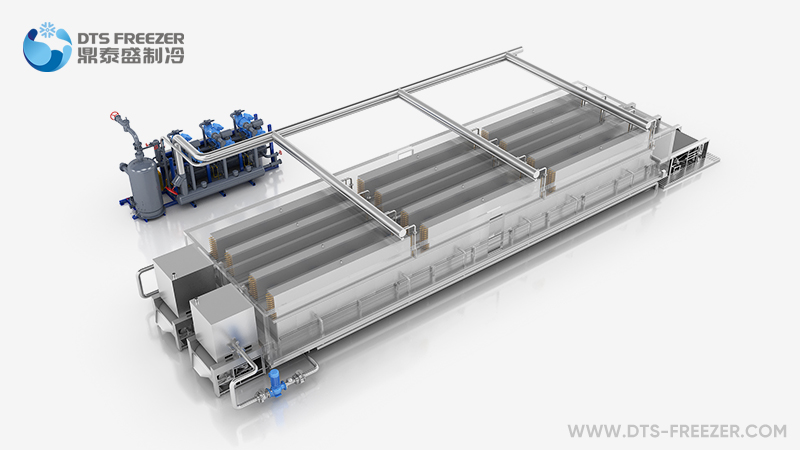

The Brine plate-Quick Freezer conveyor usesimported high-strength stainless steel strips, which have good elasticity, high rigidity, and are not easyto deform. The transmission motor uses variablefrequency stepless speed regulation. lt is equipped with a down-blowing device,which greatly improves the heat exchange effect of the lower surface of the strip.Since the food is generally close to the strip, the freezing time is shortened.The plate-belt single freezer has little effect on theappearance of the food and has no mesh marks. lt is particularly suitable for large and thin products.
